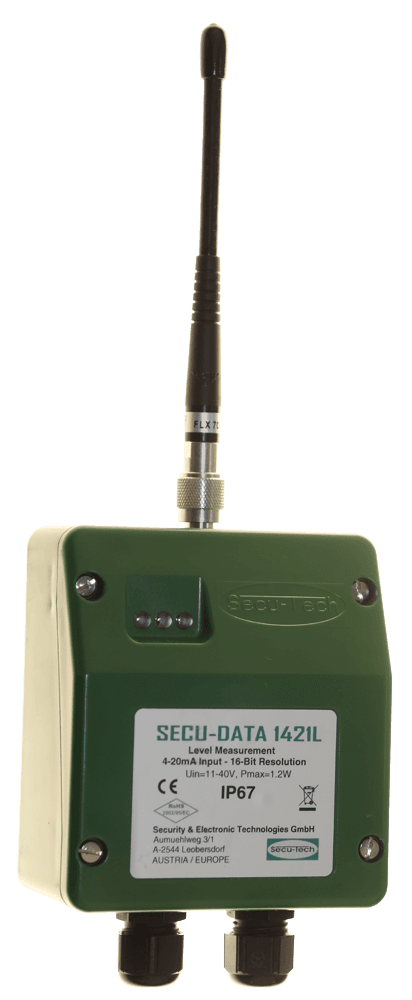

SECU Data Non EX
SECU Data Non EX is the device variant for wireless measurement data transmission in non hazardous areas. Sensor values are captured at the measuring point, digitized and transmitted by radio to a receiver module. This detail page complements the SECU Data system overview.
Application area
SECU Data Non EX is used when industrial sensors need to be connected to a central evaluation point without long cable routes. Typical applications include process monitoring, plant extension, level measurement and remote monitoring of measuring points.
Technical characteristics
-
Radio transmission in the 433 MHz range.
-
Transmission of 4 to 20 mA signals, relay contacts, Namur, TRbF and RS232.
-
Range up to 1.5 km, depending on setup and environment.
-
IP 67 for outdoor applications.
-
Automatic channel selection with permanent monitoring of radio status.
-
Direct connection of industrial sensors.
Compatible components
SECU Data Non EX is planned with receiver and antenna. The received signals can be provided for process control, evaluation or data forwarding.
